Product Details

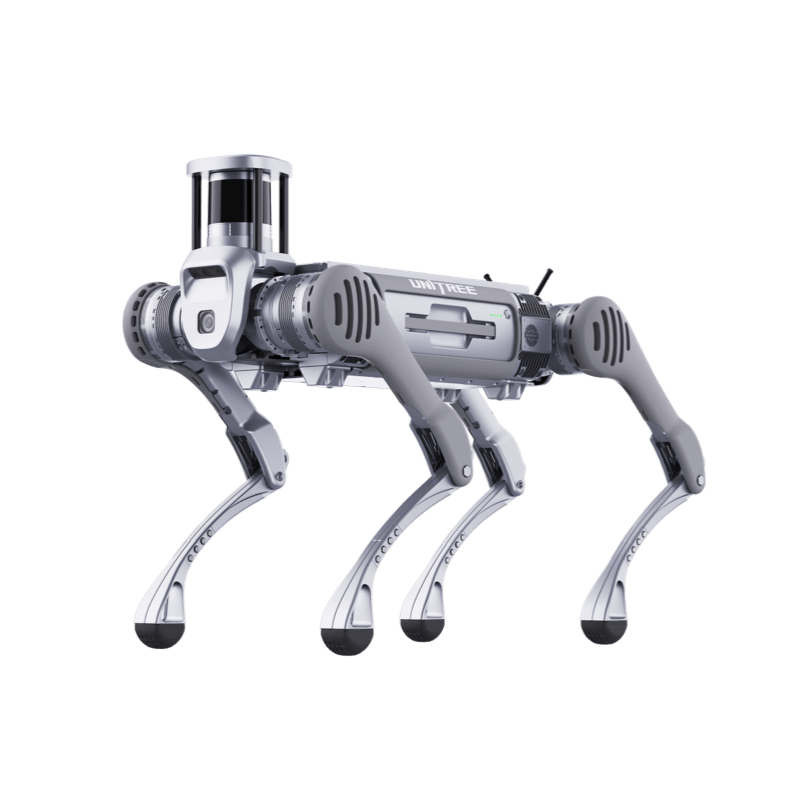

Unitree robot dog B2 is the fastest running industrial-grade quadruped , with a speed of 6m/s, a sustained load of 40kg, a sustained walking range of 5h, and a comprehensive performance that is 2 to 3 times that of other quadruped! All-terrain adaptation, large load, long-lasting endurance, super sports performance! Welcome to enquire and learn about the robot dog uses and advantages.
Fastest running industrial-grade quadruped robot at6m/s
All-rounded to cope with a variety of environments
| Parameter | Specification |
|---|---|
| Size (Standing) | ≈ 1098×450×645 mm |
| Size (Lying Prone) | ≈ 880×460×330 mm |
| Weight | ≈ 60 kg (battery included) |
| Battery Performance | 45Ah (2250Wh), 58V |
| Endurance Ability |
4–6 h Walking w/o load: >5 h, >20 km Walking with 20 kg load: >4 h, >15 km |
| Wheeled Foot | Optional |
| Load (Standing) | Max. 120 kg |
| Load (Walking) | > 40 kg |
| Continuous Stair Climbing | 20–25 cm stairs |
| Climbing Ability | Stairs of 40 cm (forward) |
| Operating Temperature | -20℃ ~ 55℃ |
| Climbing Angle | > 45° |
| Running Speed | > 6 m/s |
| Ditch Jumping Width | 0.5–1.2 m |
| Max Jump Distance | > 1.6 m |
| Ingress Protection | IP67 |
| Control & Perception |
Standard: Intel i5 (Platform), i7 (Dev) Optional: Intel i7 + Jetson Orin NX (up to 3) |
| Sensing Sensors | 3D LiDAR ×1 + Depth cam ×2 + Optical cam ×2 |
| External Interface |
1000M Ethernet ×4, USB3.0 ×4 12V×4, 5V×1, 24V×4, BAT×1 |
