Product Details

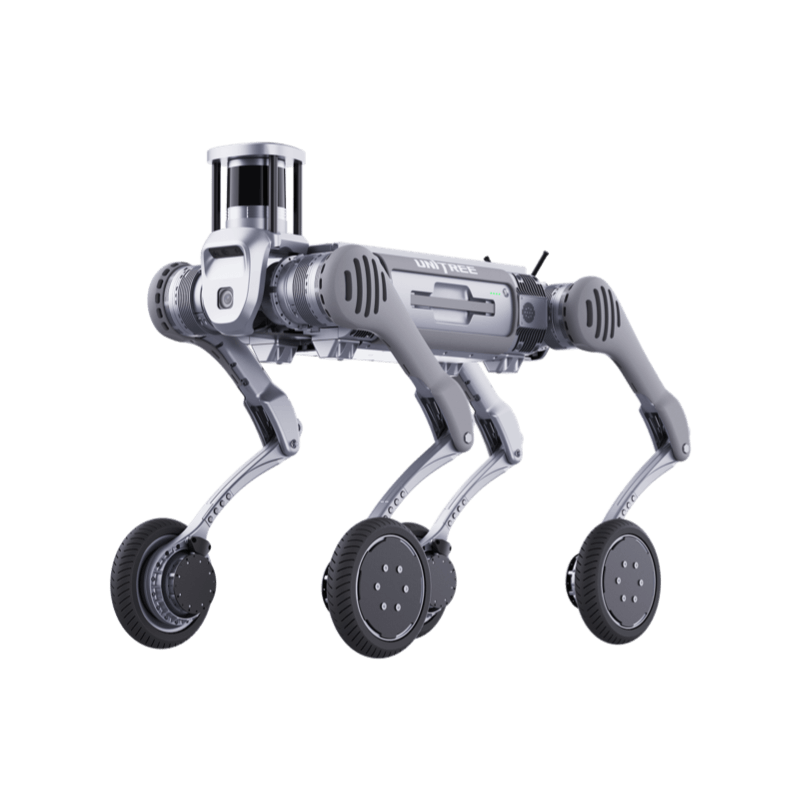

The Unitree B2-W is an innovative quadruped robot capable of switching flexibly between legged and wheeled locomotion. Whether navigating rugged terrain or traversing smooth surfaces, it adapts seamlessly. Equipped with advanced mobility and perception-control systems, the B2-W excels in real-world applications like industrial inspection, emergency response, warehouse logistics, and security patrols. It represents the future of dynamic, versatile, and efficient robotic operation.
| Parameter | Value |
|---|---|
| Size (Standing) | ≈ 1098mm × 550mm × 758mm |
| Size (Lying Prone) | ≈ 950mm × 550mm × 450mm |
| Weight | ≈ 85kg (battery included) |
| Battery Capacity | ＞2kWh, 58V |
| Maximum Horizontal Pulling Force | 15km/h [1] |
| Endurance Ability | Maximum endurance of 25km with 40kg load [2] Maximum endurance without load ≈ 30km |
| Maximum Load (Standing) | 120kg |
| Load (Walking) | > 40kg |
| Wheel Diameter | 225mm |
| Maximum Wheel Speed | 50rad/s |
| Maximum Wheel Torque | 40N·m |
| Continuous Stair Climbing | Stairs of 20~25cm |
| Climbing Ability | Climb up and down stairs of 40cm (forward) |
| Operating Temperature | -20℃ ~ 55℃ |
| Climbing Angle | > 45° |
| Ingress Protection | IP67 |
| Control and Perception | Standard: Intel Core i5 (Platform), Intel Core i7 (User) Optional: Intel Core i7 + Jetson Orin NX (up to 3 devices) |
